Home / Products / Nylon Cable Ties / Nylon Cable Ties- Self-Lock Type
Nylon Cable Ties

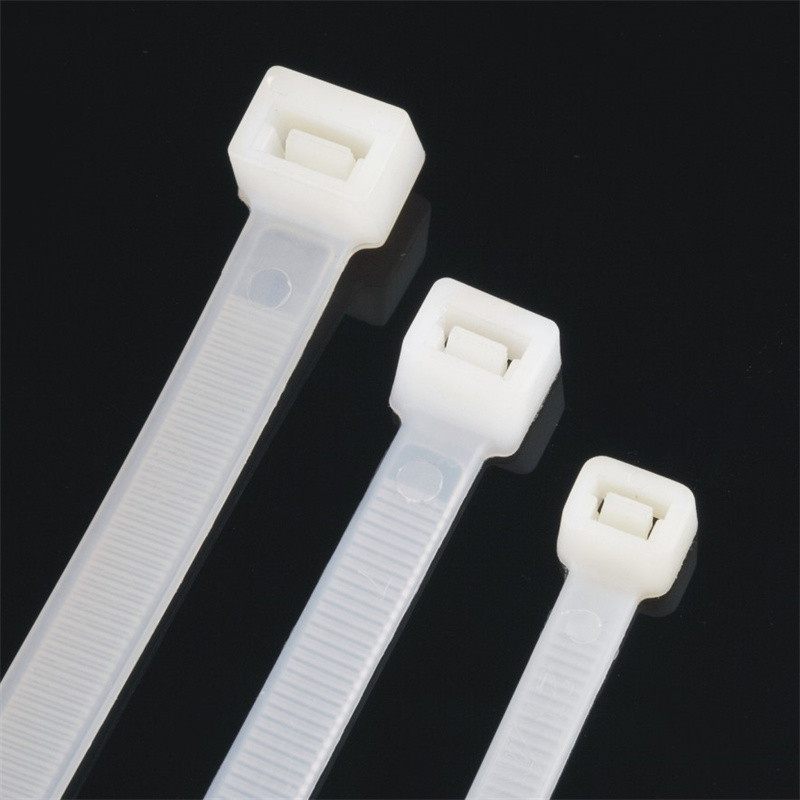

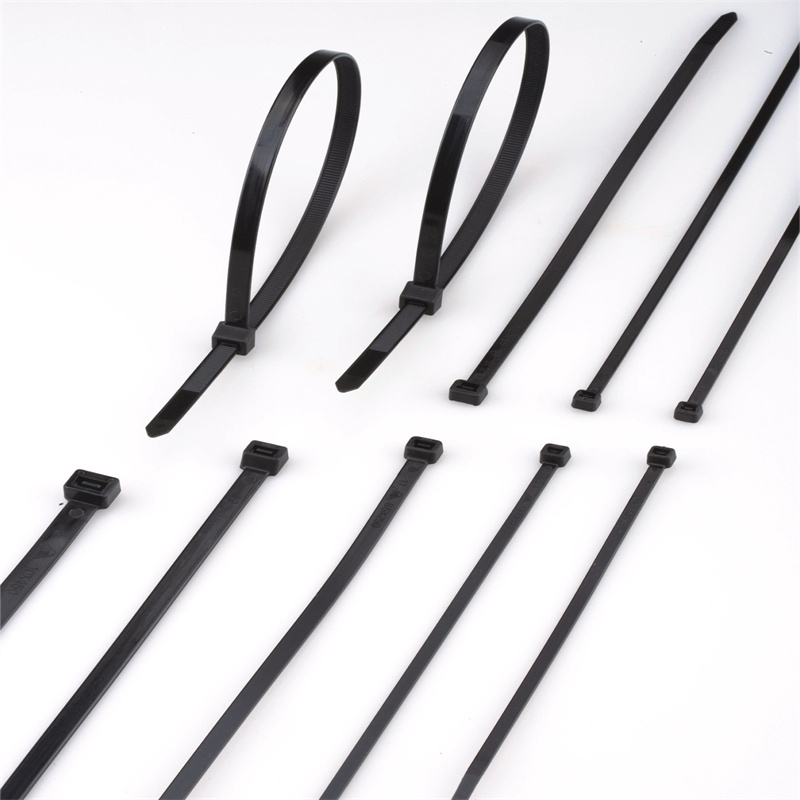

Nylon Cable Ties- Self-Lock Type

Technical Information

Material: Nylon 66

Working Temp.: -40℃ to 85℃

Color: Nature or Black

Flammability: UL94 V-2

Other properties: Halogen free

Product Feature

 Versatile cable ties can be used in countless applications.

One-piece construction for consistent performance and reliability.

Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation.

A variety of materials and colors is available for specific applications.

For indoor or outdoor use

Available Special Requirements

Flame retardant(UL  94  V-0) .

UV Resistant, ideal for outdoor use with lots of sunlight.

Heat stabilized(up to +125℃). Ideal for environments with high temperatures.

Ideal for environment requires low flammability and low smoke, such as public transportation, tunnels, etc.

CONTACT US
  • Nylon Cable Ties- Self-Lock Type
  • Nylon Cable Ties- Self-Lock Type
PREV：Nylon Cable Ties- Self-Cutting TiesNEXT：Nylon Cable Ties- Barb-Lock Type
Technical parameter
ltem No. Width Length Thickness Max.Bundle Dia. Min. Bundle Dia. Min. Tensile Strength Hand Tool
mm inch mm inch mm inch mm inch mm inch N lbs
NZDS-2.5*99 2.5 0.098 99 3.9 1.1 0.043 22 0.87 2 0.079 80 18 LS-519
NZDS-3.6*142 3.6 0.142 142 5.59 1.2 0.047 33 1.3 3 0.118 178 40
NZDS-3.6*203 3.6 0.142 203 7.99 1.2 0.047 50 1.97 3 0.118 178 40
NZDS-4.8*249 4.8 0.189 249 9.8 1.35 0.053 65 2.56 3.5 0.138 222 50
NZDS-4.8*292 4.8 0.189 292 11.5 1.35 0.053 79 3.11 3.5 0.138 222 50
NZDS-4.8*368 4.8 0.189 368 14.49 1.35 0.053 98 3.85 3.5 0.138 222 50
NZDS-4.8*445 4.8 0.189 445 17.52 1.35 0.053 128 5.04 3.5 0.138 222 50
NZDS-7.6*251 7.6 0.299 251 9.88 1.9 0.075 65 2.56 8 0.315 534 120
NZDS-7.6*300 7.6 0.299 300 11.81 1.9 0.075 80 3.15 8 0.315 534 120
NZDS-7.6*368 7.6 0.299 368 14.49 1.9 0.075 96 3.78 8 0.315 534 120
NZDS-7.6*400 7.6 0.299 400 15.75 1.9 0.075 105 4.13 8 0.315 534 120
NZDS-7.6*556 7.6 0.299 556 21.89 1.9 0.075 167 6.57 8 0.315 534 120
NZDS-7.6*775 7.6 0.299 775 30.51 1.9 0.075 203 7.99 8 0.315 534 120
- Please add"N" for Nature, or "B" for black color.
- special color and size available, please contact with FENGFAN customer service.
- For information on installation tools, refer to Hand Tools pages.
