Nylon Cable Ties

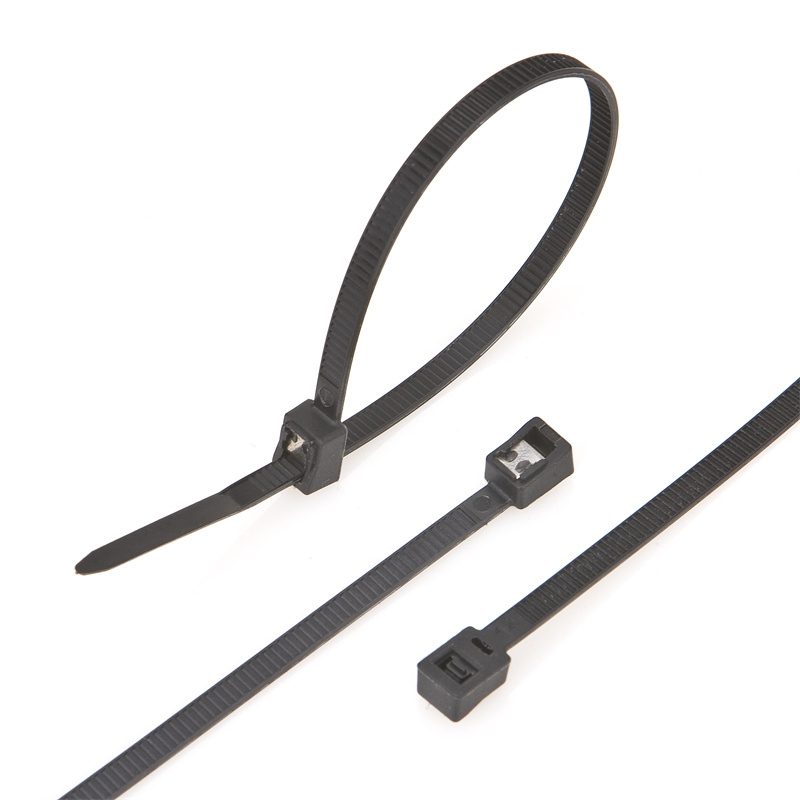

Nylon Cable Ties- Self-Cutting Ties

Technical Information

Material-Tie: Nylon 66

Material Metal: Stainless Steel Grade 304 or 316.

Color: Nature or Black

Flammability: UL94V2

 Working Temp.: -40℃to 85℃

Other properties: UV Resistant; Flame Retardant ( UL94V-0)

Product Feature
Selfdesigned by Fengfan for quick, easy, tool less installation.
After installing, remove excess tail by hand, with simple action" bend and twist".
No sharp edges left, after the tail breaked.
Suitable for any general purpose as normal cable ties.
One-piece construction for consistent performance and reliability.
Curved tip is easy to pick up from flat surface and allows faster initial threading to speed installation.
A variety of materials is available for specific applications.
For indoor or outdoor use.
Available Special Requirements
UV Resistant, ideal for outdoor use with lots of sunlight.
Flame retardant(UL 94V-0). Ideal for environment requires low flammability and low smoke, such as public transportation, tunnel, etc.
Heat stabilized(up to +105ˇ). Ideal for environment with high temperature.
CONTACT US
  • Nylon Cable Ties- Self-Cutting Ties
PREV：Flame Retardant Nylon Cable TiesNEXT：Nylon Cable Ties- Self-Lock Type
Technical parameter
ltem No. Width Length Thickness Max. Bundle Dia. Min. Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
NZDSC-4.2*203 4.2 0.165 203 7.99 1.2 0.047 50 1.97 3.5 0.138 220 50
NZDSC-4.2*280 4.2 0.165 280 11.02 1.25 0.049 78 3.07 3.5 0.138 220 50
NZDSC-4.2*356 4.2 0.165 356 14.01 1.25 0.049 Q0
     0		 3.5 3.5 0.138 220 50
- Please add"N" for Nature, or "B" for black color.
- special colors and sizes are available, please contact FENGFAN customer service.
