Home / Products / Cable Cleats / Stainless Steel 316 Quad Cable Cleats For Cable Management
Cable Cleats

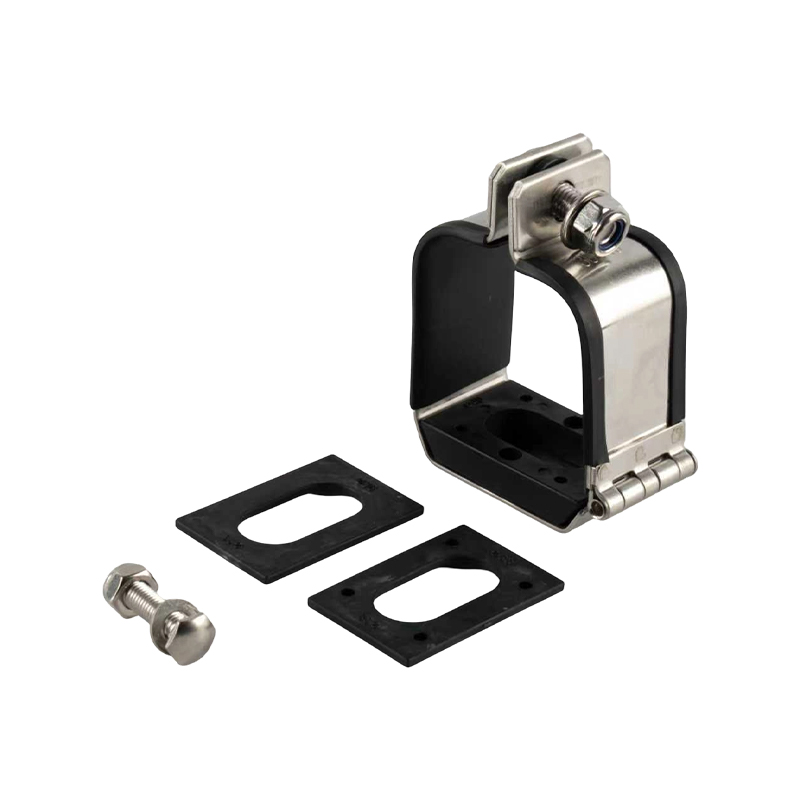

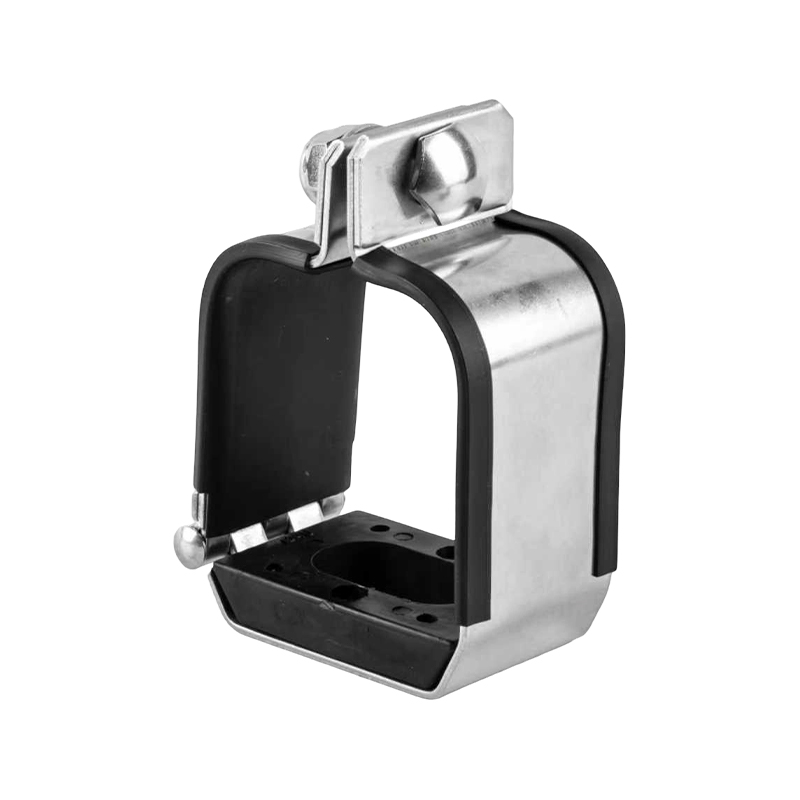

Stainless Steel 316 Quad Cable Cleats For Cable Management

FENGFAN Cable Cleats are designed to support and retain your cables within your cable tray system in every condition. More importantly, they prevent the damage in short circuit conditions. Unfortunately, short circuit always happens, and when it do, it's destructive and dangerous to the cables and cable system. FENGFAN Cable Cleats are one of the first lines of defense to help protect the person, the cables and cable system.

CONTACT US
  • Stainless Steel 316 Quad Cable Cleats For Cable Management
  • Stainless Steel 316 Quad Cable Cleats For Cable Management
  • Stainless Steel 316 Quad Cable Cleats For Cable Management
PREV：Stainless Steel PPA Coated Band 15.9mm WidthNEXT：Stainless Steel 316 Single Cable Cleats For Cable Management VRS Series
Technical parameter
FF-Q Quad Cable Cleats
Part Number Cable Diameter Range Dimension
Max. Dia. Max. Dia. Max. Dia. H W
mm in. mm in. mm in. mm in. mm in.
FF-Q1822 18 0.71 20 0.79 22 0.87 92 3.62 61 2.4
FF-Q2428 24 0.94 26 1.02 28 1.1 104 4.09 73 2.87
FF-Q3034 30 1.18 32 1.26 34 1.34 116 4.57 85 3.35
FF-Q3640 36 1.42 38 1.5 40 1.57 128 5.04 97 3.81
FF-Q4246 42 1.65 44 1.73 46 1.81 140 5.51 109 4.29
FF-Q4852 48 1.89 50 1.97 52 2.05 152 5.98 121 4.76
FF-Q5458 54 2.13 56 2.2 58 2.28 164 6.46 133 5.24
FF-Q6064 60 2.36 62 2.44 64 2.52 176 6.93 145 5.71
FF-Q6670 66 2.6 68 2.68 70 2.76 188 7.4 157 6.18
Click to view

Leave your requirements, and we will contact you!

Related products

Self-developed and manufactured

Zhejiang Fengfan Cable Fittings Co.,Ltd., is a private joint-equity enterprise, it was founded on June 16th, 2020, with a registered capital of 10 million CNY. The factory has a construction area of 25,000㎡ and covers an area of 12,000㎡. It is located in Shangyu District, Shaoxing City, Zhejiang Province, The city is near Ningbo Seaport, Hangzhou Airport, and Shanghai Seaport.

We are a professional China OEM Stainless Steel 316 Quad Cable Cleats For Cable Management Suppliers and ODM Stainless Steel 316 Quad Cable Cleats For Cable Management Company, The company is committed to making independent research, development, manufacturing, and sales on kinds of cable ties, cable cleats automobile clamps, and so on. It mainly produces kinds of stainless steel cable ties (eg, Uncoated, Epoxy/Polyester coated, PVC coated, PPA coated, PA11 coated ), nylon cable ties, weather-resistant acetal products, stainless steel cable cleats, automotive clamps, and other cable accessories. The products are widely used in Offshore Projects, Shipbuilding, Port Machinery, railways, Automobiles, Power Energy, Aviation, Nuclear Power, Electricity, Telecommunication, and so on. The products aim for a middle-high market position, with independent export rights.
