Home / Products / Cable Markers / Stainless Steel Tags
Cable Markers

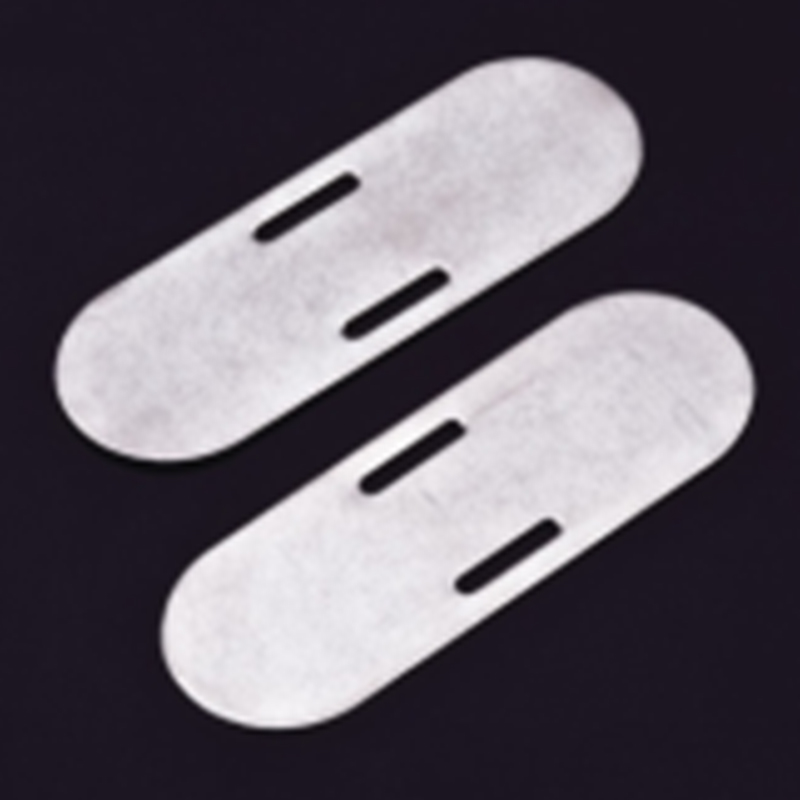

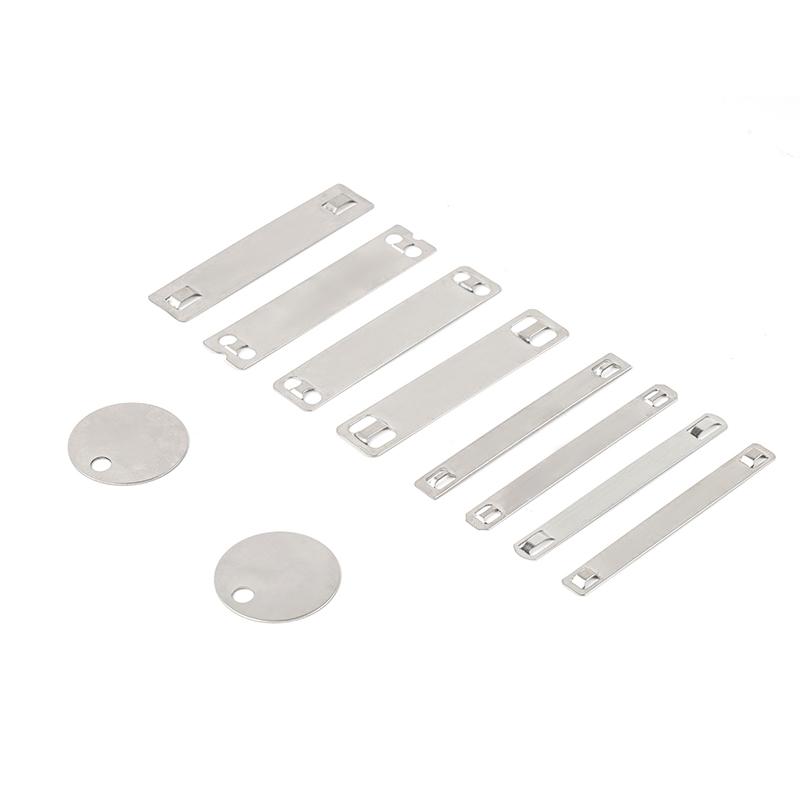

Stainless Steel Tags

Technical Information

Material: Stainless Steel Grade 304 or 316; Copper

Temperature: -80℃ to +538℃

Colour: Metallic

Product Feature
Identify pipes, conduit, values, cables and equipment in petrochemical plants, pulp and paper mills, refineries, offshore oil rigs and any other harsh environments.
AlI marker plates/tags can be custom marked by cable tie with one or two computer controlled systems to provide permanent identification to
resist corrosion, abrasion and radiation.
Use with standard and heavy duty stainless steel ties.
Different shape available, like Square, Elipse, Rectangle.

CONTACT US
  • Stainless Steel Tags
  • Stainless Steel Tags
  • Stainless Steel Tags
  • Stainless Steel Tags
PREV：No previous article!NEXT：Nylon Cable Marker Carrier
Technical parameter
Item No. Width Length Thickness Width of Hole Packing
mm inch mm inch mm inch mm inch Pcs/bag
Rectangle&Square
SST-0892 8  0.31  92  3.62  0.26  0.010  13.0  0.51  100
SST-1089 10  0.39  89  3.50  0.36  0.014  8.0  0.31
 SST-10106 10  0.39  106  4.17  0.36  0.014  10.0  0.39
 SST-10200 10  0.39  200  7.87  0.36  0.014  10.0  0.39
SST-1270 12  0.47  70  2.76  0.36  0.014  11.0  0.43
SST-1289 12  0.47  89  3.50  0.40  0.016  10.0  0.39
  SST-12100-A 12  0.47  100  3.94  0.36  0.014  10.0  0.39
  SST-12100-B 12  0.47  100  3.94  0.40  0.016  10.0  0.39
 SST-15110 15  0.59  110  4.33  1.00  0.039  4.0  0.16
  SST-1989-A 19  0.75  89  3.50  0.37  0.015  6.0  0.24
  SST-1989-B 19  0.75  89  3.50  0.36  0.014  12.0  0.47
  SST-1989-C 19  0.75  89  3.50  0.36  0.014  6.2  0.24
  SST-1989-D 19  0.75  89  3.50  0.36  0.014  10.0  0.39
  SST-1989-E 19  0.75  89  3.50  0.36  0.014  10.5  0.41
  SST-1989-F 19  0.75  89  3.50  0.36  0.014  10.0  0.39
SST-2080 20  0.79  80  3.15  1.00  0.039  6.0  0.24
SST-2650 26  1.02  50  1.97  1.00  0.039  4.0  0.16
SST-3060 30  1.18  60  2.36  0.50  0.020  10.0  0.39
Ellipse
SST-1645 16  0.63  45  1.77  0.40  0.016  8.3  0.33  100
SST-2050-A 20  0.79  50  1.97  0.5  0.020  8.5  0.33
SST-2050-B 20  0.79  50  1.97  0.3  0.012  8.5  0.33
 SST-2460 24  0.94  60  2.36  0.50  0.020  10.0  0.39
- Special size available, please contact FENGFAN customer service.
- Please add the material grade by the end of the Item number.
