Nylon Cable Ties

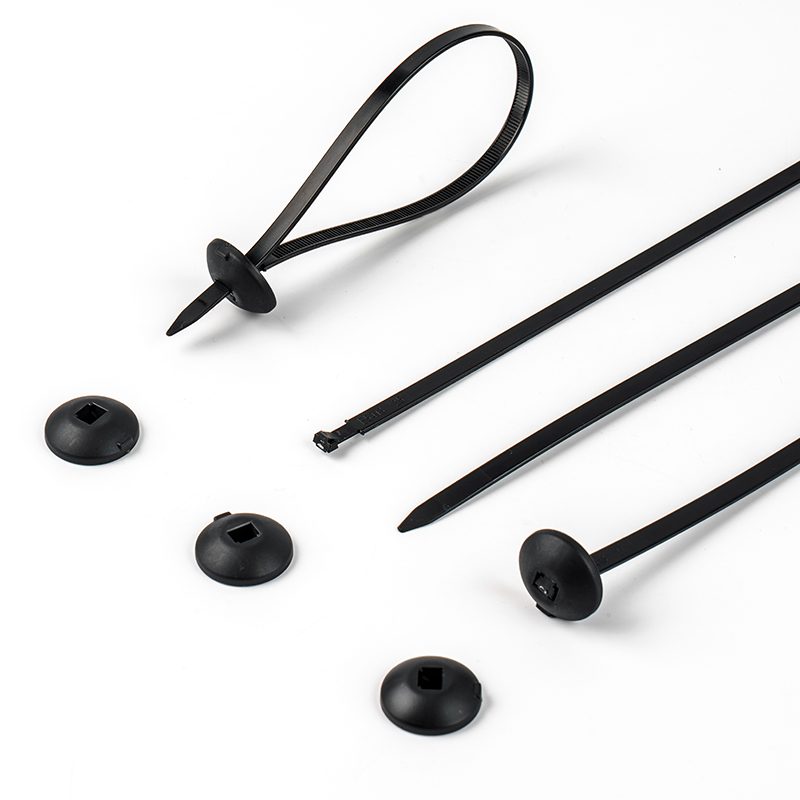

Panel Nylon Cable Ties

Technical Information
Material: Nylon 66
Working Temp.: -40℃ to 85℃
Color: Black
Flammability: UL94 V-2
Other properties: Halogen free
Product Feature
Greater resistance to damage caused by ultraviolet light and for high temperature applications-indoor or outdoor use.
Unique design allows tie to secure a bundle directly to a chassis or panel without the need for separate fasteners or mounting devices.
Releasable prior to final tensioning for bundle modifications.
Engages clearance hole with optional pilot to prevent tie from shifting or abrading in high vibration enviroments.
CONTACT US
  • Panel Nylon Cable Ties
PREV：Nylon Cable Ties- Wing-Lock TypeNEXT：Flame Retardant Nylon Cable Ties
Technical parameter
ltem No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
NZDG-6.4*250 6.4 0.251 250 9.84 1.6 0.063 67 2.64 10 0.394 400 90
NZDG-6.4*280 280 11.02 76 2.99 10 0.394
