Nylon Cable Ties

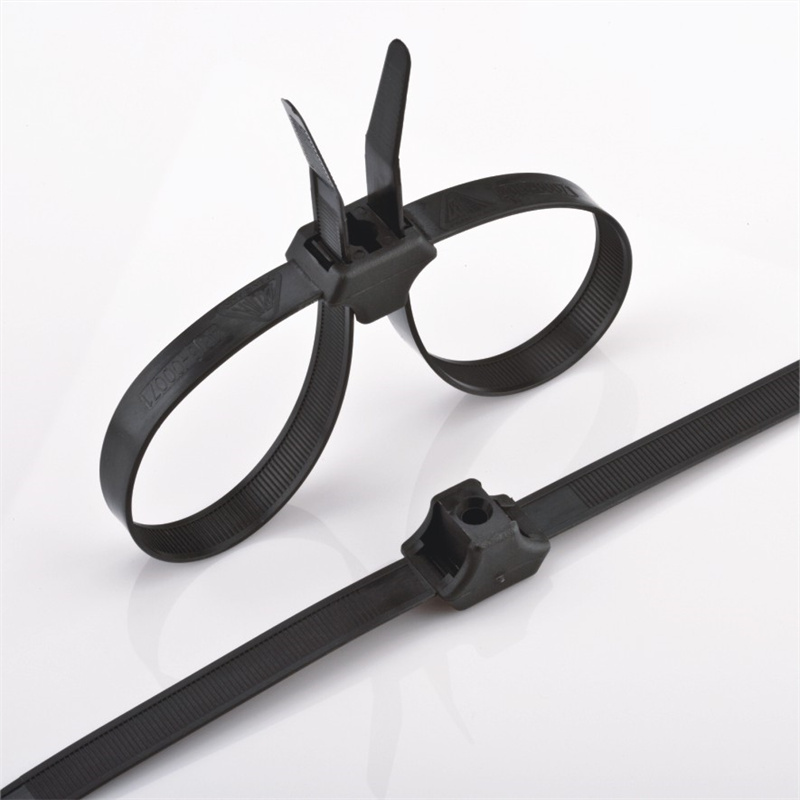

Nylon Cable Ties- Wing-Lock Type

Technical Information
Material: Nylon 66
Working Temp.: -40℃ to 85℃
Color: Nature or Black
Flammability: UL94V-2
Available Special Features: UV Resistant; Flame Retardant (UL94V-0)
Product Feature
Handle two bundles of cable & Wires, using one tie.
The cable tie can be installed onto the material's surface, by the nails or strew.
For indoor or outdoor use
CONTACT US
  • Nylon Cable Ties- Wing-Lock Type
PREV：No previous article!NEXT：Panel Nylon Cable Ties
Technical parameter
ltem No. Width Length Thickness Max. Bundle Dia. Min. Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
NZDW-12.7*140 12.7 0.5 140* 5.51* 1.4 0.055 30 1.06 18 0.71 500 112
NZDW-12.7*165 165* 6.50* 35 1.38 18 0.71
NZDW-12.7*250 250* 9.84* 58 2.28 18 0.71

*One side length

- Please add " N" for Nature, or " B" for black color.

- special colors and sizes are available, please contact FENGFAN customer service.
