Home / Products / Weather Resistance Acetal / Acetal Weather Resistant Double Buckle Tie
Weather Resistance Acetal

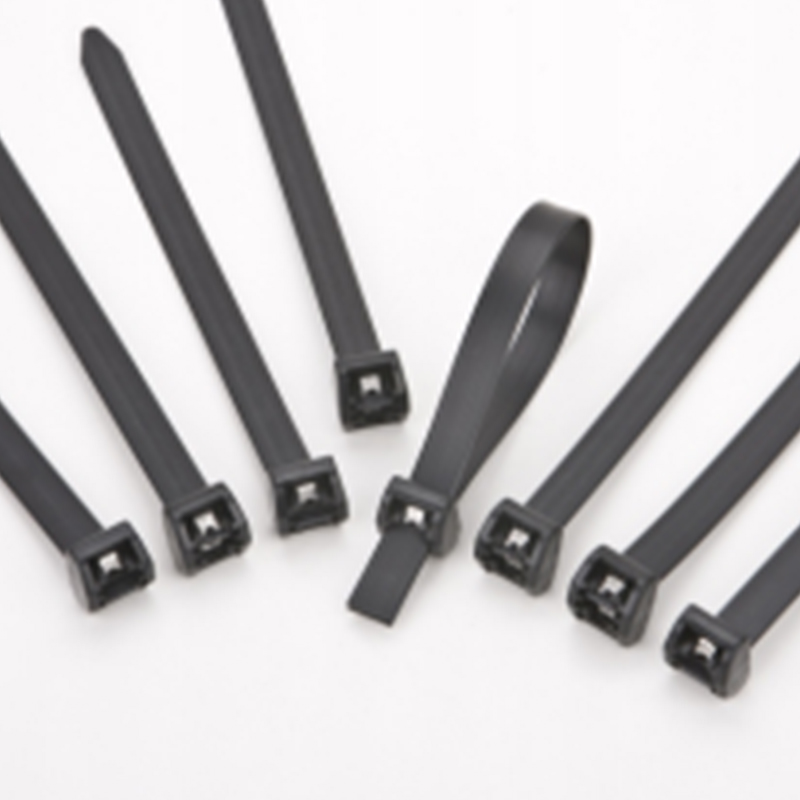

Acetal Weather Resistant Double Buckle Tie

 Technical Information

Material Strap And Head: Toughened weather-resistant acetal

Material Locking barb:  Marine grade, corrosion resistant  304 stainless steel

Temperature Range: -40℃ to 85℃

Flammability Rating: UL  94  HB

Colour: Black

Other Properties: UV resistant, Halogen free,   superior resistance to moisture and saltwater environments.

Product Feature

Black acetal strap and head material provide 20+ years of outdoor life and high impact resistance.

Excellent ultraviolet light, chemical, and moisture resistance.

Extremely robust ties, with high tensile strength (1112N) after fastening.

Double Stainless Steel locking barbs provide consistent and predictable holding values.

Ideal for securing cables in outdoor messenger strand applications.

Convenient reel dispenser pack allows installer to cuttosize for customized field applications.

Several precut sizes have leadin style angled tips on preassembled straps for easy installation, even with gloved hands, to speed installation.

Maybe used with stackable aeribal cable spacer.

CONTACT US
  • Acetal Weather Resistant Double Buckle Tie
PREV：Acetal Weather Resistant StrapNEXT：No next article!
Technical parameter
Item No. Width Length Thickness Max.Bundle Dia. Min.Tensile Strength Packing Tool
mm inch mm inch mm inch mm inch N lbs pcs/bag bags/Ctn.
DT-12.7*203 12.7  0.5  203  7.99  1.55  0.061  62  2.44  1112  250  50  1000  AST
DT-12.7*254 254  10.00  75  2.95  50  1000
DT-12.7*343 343  13.50  98  3.86  50  1000
DT-12.7*406 406  16.00  120  4.72  50  500
DT-12.7*457 457  17.99  135  5.31  50  500
DT-12.7*686 686  27.01  203  7.99  25  500
DT-12.7*1219 1219  47.99  355  13.98  25  250
DT-12.7*1346 1346  52.99  381  15.00  25  250
DT-12.7*2438 2438  95.98  711  27.99  25  ***
DT-12.7*3658 3658  144.02  1117  43.98  25  ***
DT-19*203 19  0.75  203  7.99  1.55  0.061  62  2.44  1900  425  50  1000
DT-19*254 254  10.00  75  2.95  50  1000
DT-19*343 343  13.50  98  3.86  50  1000
DT-19*406 406  16.00  120  4.72  50  500
DT-19*457 457  17.99  135  5.31  50  500
DT-19*686 686  27.01  203  7.99  25  500
DT-19*1219 1219  47.99  355  13.98  25  250
DT-19*1346 1346  52.99  381  15.00  25  250
DT-19*2438 2438  95.98  711  27.99  25  ***
DT-19*3658 3658  144.02  1117  43.98  25  ***

- Other lengths available, please contact FENGFAN Customer Service.
- For information on installation tools, refer to Hand Tools pages.
- The recommended maximum continuous loading for 12.7mm Strapsis90N per Strap.
- For the best Results suggested spacing is 35 to 40cm.
