Stainless Steel Cable Ties

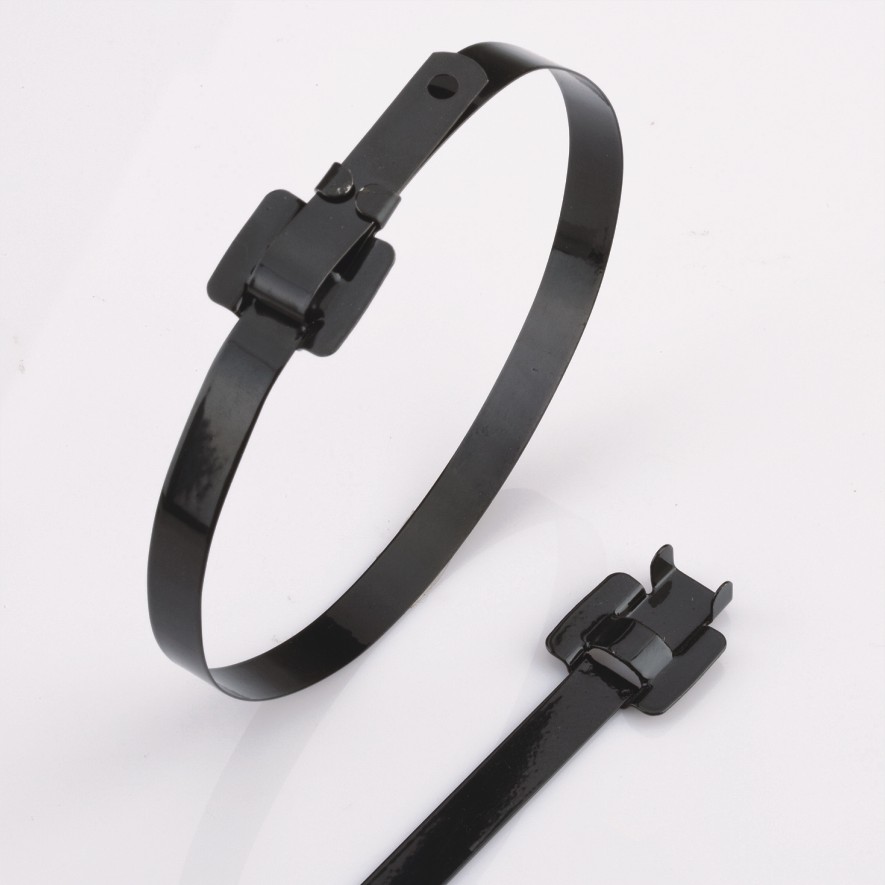

Stainless Steel Cable Ties- Releasable Polyester Coated Ties

Technical Information
Material: Stainless Steel Type 304 or316
Coating: Polyester/Epoxy, Nylon 11
Working Temp:: -40°C to 150°C
Description: Entirely Black
Flammability: Fireproof
Other Properties: UV-resistant, Halogen Free, Non-toxic;

Product Feature
Releasable and Reusable.
Fast, easy and reliable installation.
Slots at the end of the tie allow the use of a hook-type tool.
Additional ears can be bent back over the fastened tie to increase the tensile strength.
Strap can go through the buckle twice for higher tensile strength.
Fully coated version with non-toxic, halogen free polyester coating.
Provides additional edge protection.
Prevent the corrosion between dissimilar materials.

CONTACT US
  • Stainless Steel Cable Ties- Releasable Polyester Coated Ties
PREV：Stainless Steel Cable Ties- F Type Uncoated TiesNEXT：Stainless Steel Cable Ties- Releasable Uncoated Ties
Technical parameter
ltem No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength Recommended
Installation Tool
mm inch mm inch mm inch mm inch mm inch N lbs
RBS-6.4*152 6.4  0.25  152  5.98  0.60  0.024  38  1.50  19  0.75  334/1334 75/300 LQA-S
LQD-S
LQG
LBG
RBS-6.4*229 229  9.02  63  2.48  31.5  1.24
RBS-6.4*305 305  12.01  86  3.39  43  1.69
RBS-6.4*457 457  17.99  137  5.39  68.5  2.70
RBS-6.4*610 610  24.02  185  7.28  92.5  3.64
RBS-9.6*152 9.6  0.38  152  5.98  0.60  0.024  38  1.50  19  0.75  1112/2000 250/450 LQA-S
LQD-S
RBS-9.6*229 229  9.02  63  2.48  31.5  1.24
RBS-9.6*305 305  12.01  86  3.39  43  1.69
RBS-9.6*457 457  17.99  137  5.39  68.5  2.70
RBS-9.6*610 610  24.02  185  7.28  92.5  3.64
RBS-9.6*762 762  30.00  231  9.09  115.5  4.55
RBS-9.6*914 914  35.98  280  11.02  140  5.51

* SingleWrapped/ Double Wrapped
- Other lengths available, contact FENGFAN customer service.
- For information on installation tools, refer to hand tools pages.
- Please add the material grade by the end of the item number.
