Home / Products / Stainless Steel Cable Ties / Stainless Steel Cable Ties- O Type Polyester Coated Ties
Stainless Steel Cable Ties

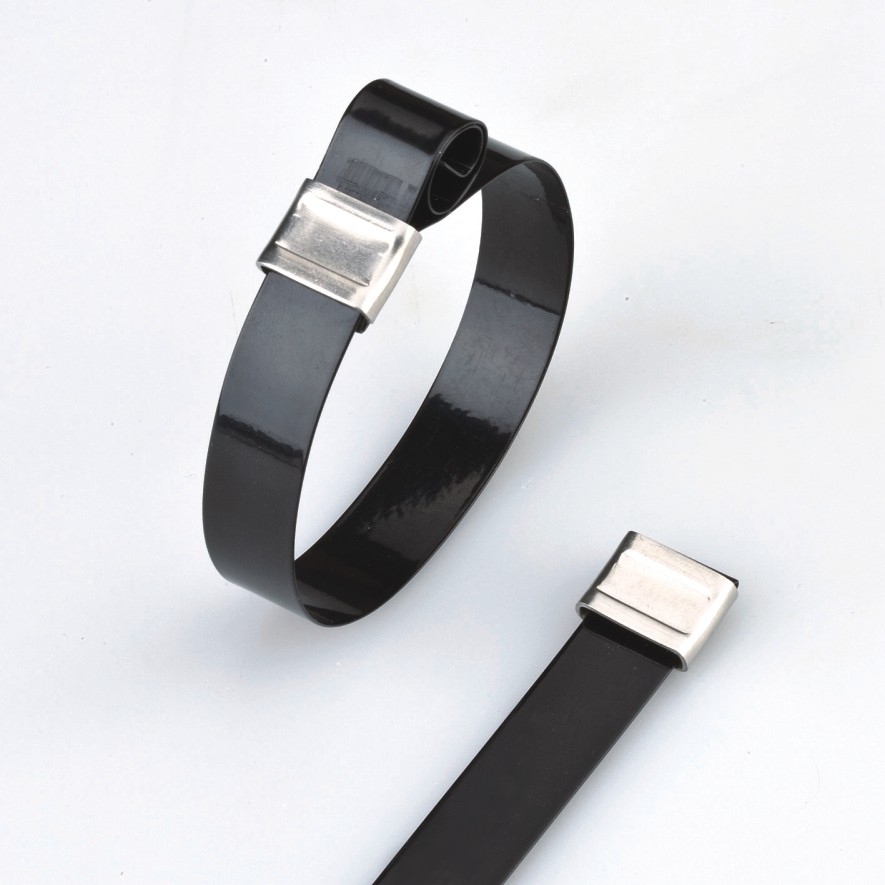

Stainless Steel Cable Ties- O Type Polyester Coated Ties

Technical Information
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temp: -40°C to150°C
Description: Black Strap with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant, Halogen free, non toxic

Product Feature
No slippage when cut end is rolled in.
Metallic buckle helps to distinguish from black nylon tie.
Coated strap with non-toxic, halogen free polyester coating.
Provide additional edge protection.
Prevent the corrosion between dissimilar materials.

CONTACT US
  • Stainless Steel Cable Ties- O Type Polyester Coated Ties
PREV：Stainless Steel Cable Ties- O Type PVC Coated TiesNEXT：Stainless Steel Cable Ties- F Type Uncoated Ties
Technical parameter
Item No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min.Tensile Strength Recommended
Installation Tool
mm inch mm inch mm inch mm inch mm inch N lbs
FZOSP-12*150 12  0.47  150  5.91  0.50  0.020  32  1.25  25.4  1.00  220  50  T-tools
FZOSP-12*200 200  7.87  48  1.88
FZOSP-12*250 250  9.84  64  2.51
FZOSP-12*300 300  11.81  80  3.13
FZOSP-12*350 350  13.78  96  3.76
FZOSP-12*400 400  15.75  111  4.39
FZOSP-12*500 500  19.69  143  5.64
FZOSP-12*600 600  23.62  175  6.90
FZOSP-12*700 700  27.56  207  8.15
FZOSP-12*800 800  31.50  239  9.40
FZOSP-15*150 15  0.59  150  5.91  0.50  0.020  32  1.26  25.4  1.00  250  60  T-tools
FZOSP-15*200 200  7.87  48  1.88
FZOSP-15*250 250  9.84  64  2.51
FZ0SP-15*300 300  11.81  80  3.13
FZOSP-15*350 350  13.78  96  3.76
FZOSP-15*400 400  15.75  111  4.39
FZOSP-15*500 500  19.69  143  5.64
FZOSP-15*600 600  23.62  175  6.90
FZOSP-15*700 700  27.56  207  8.15
FZOSP-15*800 800  31.50  239  9.40
FZOSP-15*1000 1000  39.37  303  11.91

- Other lengths available, contact FENGFAN customer service.
- For information on installing tools, see the manual tools page.
- Please add the material grade by the end of the item number.
