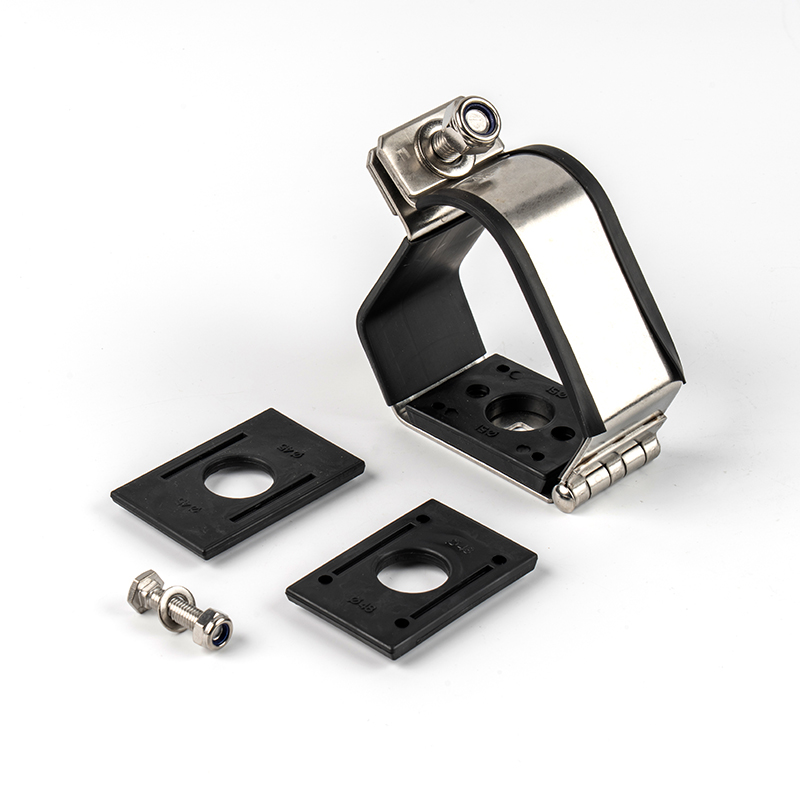

Stainless Steel 316 Trefoil Cable Cleats For Cable Management

CONTACT US
  • Stainless Steel 316 Trefoil Cable Cleats For Cable Management
  • Stainless Steel 316 Trefoil Cable Cleats For Cable Management
PREV：Stainless Steel 316 Single Cable Cleats For Cable ManagementNEXT：Stainless Steel 316 Single Cable Cleats For Cable Management ES Series
Technical parameter
FF-T Trefoil Cable Cleats
Part Number Cable Range Dimensions
Min. Dia. Mid. Dia. Max. Dia. H W
mm in. mm in. mm in. mm in. mm in.
FF-T1323 13  0.51  / / 23  0.91  73  2.87  68  2.68
FF-T2125 21  0.83  23  0.91  25  0.98  75  2.95  72  2.83
FF-T2329 23  0.91  25  0.98  29  1.14  80  3.15  79  3.11
FF-T2531 25  0.98  27  1.06  31  1.22  83  3.27  82  3.23
FF-T2733 27  1.06  30  1.18  33  1.30  84  3.31  85  3.35
FF-T2935 29  1.14  32  1.26  35  1.38  89  3.50  90  3.54
FF-T3238 32  1.26  35  1.38  38  1.50  92  3.62  96  3.78
FF-T3541 35  1.38  38  1.50  41  1.61  98  3.86  100  3.94
FF-T3844 38  1.50  42  1.65  44  1.73  100  3.94  106  4.17
FF-T4248 42  1.65  45  1.77  48  1.89  104  4.09  113  4.45
FF-T4551 45  1.77  48  1.89  51  2.01  107  4.21  120  4.72
FF-T4753 47  1.85  50  1.97  53  2.09  110  4.33  122  4.80
FF-T4955 49  1.93  53  2.09  55  2.17  113  4.45  125  4.92
FF-T5157 51  2.01  53  2.09  57  2.24  115  4.53  127  5.00
FF-T5359 53  2.09  55  2.17  59  2.32  118  4.65  135  5.31
FF-T5561 55  2.17  57  2.24  61  2.40  122  4.80  138  5.43
FF-T5763 57  2.24  61  2.40  63  2.48  125  4.92  141  5.55
FF-T5965 59  2.32  61  2.40  65  2.56  126  4.96  145  5.71
FF-T6167 61  2.40  65  2.56  67  2.64  131  5.16  148  5.83
FF-T6369 63  2.48  65  2.56  69  2.72  134  5.28  153  6.02
FF-T6571 65  2.56  67  2.64  71  2.80  139  5.47  155  6.10
FF-T6773 67  2.64  70  2.76  73  2.87  143  5.63  156  6.14
FF-T6975 69  2.72  73  2.87  75  2.95  146  5.75  161  6.34
FF-T7177 71  2.80  75  2.95  77  3.03  150  5.91  164  6.46
FF-T7379 73  2.87  77  3.03  79  3.11  154  6.06  166  6.54
FF-T7581 75  2.95  79  3.11  81  3.19  157  6.18  170  6.69
FF-T7783 77  3.03  81  3.19  83  3.27  160  6.30  174  6.85
FF-T7985 79  3.11  83  3.27  85  3.35  162  6.38  178  7.01
FF-T8187 81  3.19  84  3.31  87  3.43  168  6.61  181  7.13
FF-T8389 83  3.27  87  3.43  89  3.50  172  6.77  185  7.28
FF-T8896 88  3.46  92  3.62  96  3.78  180  7.09  195  7.68
FF-T96103 96  3.78  100  3.94  103  4.06  189  7.44  203  7.99
FF-T103111 103  4.06  107  4.21  111  4.37  198  7.80  206  8.11
FF-T111119 111  4.37  115  4.53  119  4.69  207  8.15  215  8.46
FF-T119128 119  4.69  124  4.04  128  5.04  216  8.50  223  8.78
