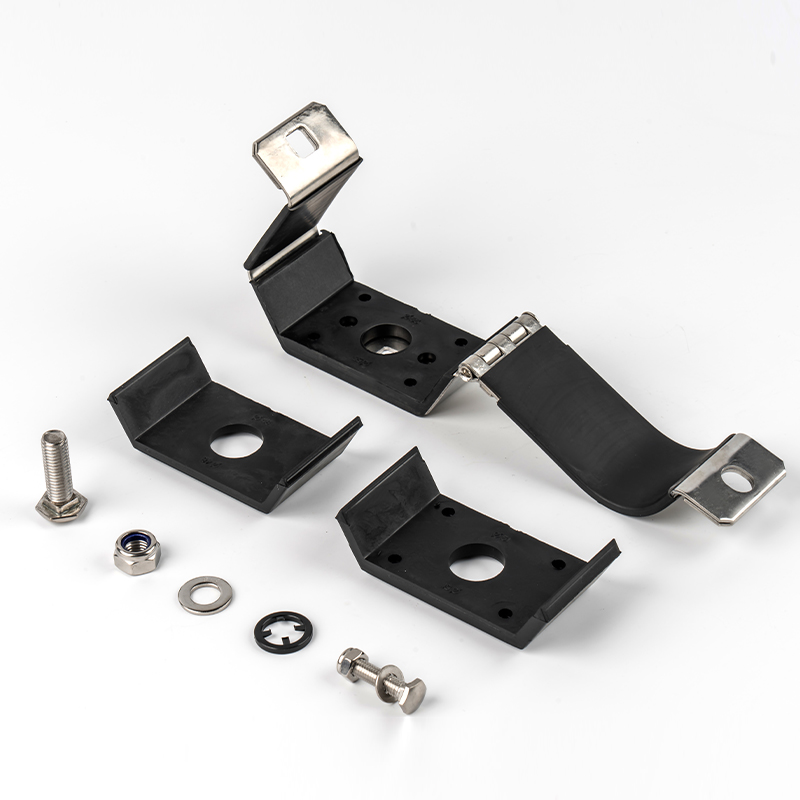

Stainless Steel 316 Trefoil Cable Cleats For Cable Management ER Series

FENGFAN Cable Cleats are designed to support and retain your cables within your cable tray system in every condition. More importantly, they prevent the damage in short-circuit conditions. Unfortunately, short circuit always happens, and when it do, it's destructive and dangerous to the cables and cable system. FENGFAN Cable Cleats are one of the first lines of defense to help protect the person, the cables and cable system.
CONTACT US
  • Stainless Steel 316 Trefoil Cable Cleats For Cable Management ER Series
  • Stainless Steel 316 Trefoil Cable Cleats For Cable Management ER Series
PREV：Stainless Steel 316 Single Cable Cleats For Cable Management ES SeriesNEXT：No next article!
Technical parameter
FF-T Trefoil Cable Cleats
Part Number Cable Range Dimensions
Min. Dia. Mid. Dia. Max. Dia. H W
mm in. mm in. mm in. mm in. mm in.
FF-T1823 18 0.71 20 0.79 23 0.91 79 3.11 82 3.23
FF-T2328 23 0.91 25 0.98 28 1.1 84 3.31 93 3.66
FF-T2732 27 1.06 29 1.14 32 1.26 91 3.58 99 3.9
FF-T3035 30 1.18 33 1.3 35 1.38 96 3.78 103 4.06
FF-T3338 33 1.3 35 1.38 38 1.5 101 3.98 107 4.21
FF-T3642 36 1.42 38 1.5 42 1.65 107 4.21 113 4.45
FF-T4046 40 1.57 44 1.73 46 1.81 114 4.49 119 4.69
FF-T4450 44 1.73 47 1.85 50 1.97 121 4.76 126 4.96
FF-T4855 48 1.89 51 2.01 55 2.17 129 5.08 137 5.39
FF-T5158 51 2.01 53 2.09 58 2.28 134 5.28 143 5.63
FF-T5562 55 2.17 57 2.24 62 2.44 141 5.55 152 5.98
FF-T5966 59 2.32 64 2.52 66 2.6 148 5.83 161 6.34
FF-T6370 63 2.48 65 2.56 70 2.76 155 6.10  169 6.65
FF-T6774 67 2.64 69 2.72 74 2.91 161 6.34 178 7.01
FF-T7178 71 2.8 73 2.87 78 3.07 168 6.61 186 7.32
FF-T7482 74 2.91 76 2.99 82 3.23 175 6.89 195 7.68
FF-T7785 77 3.03 80 3.15 85 3.35 180 7.09 202 7.95
FF-T8288 82 3.23 84 3.31 88 3.46 185 7.28 208 8.19
FF-T8896 88 3.46 92 3.62 96 3.78 199 7.83 225 8.86
FF-T96103 96 3.78 100 3.94 103 4.06 210 8.27 240 9.45
FF-T103111 103 4.06 107 4.21 111 4.37 224 8.82 258 10.16
FF-T111119 111 4.37 115 4.53 119 4.69 237 9.33 275 10.83
FF-T119128 119 4.69 124 4.88 128 5.04 253 9.96 295 11.61
Click to view
